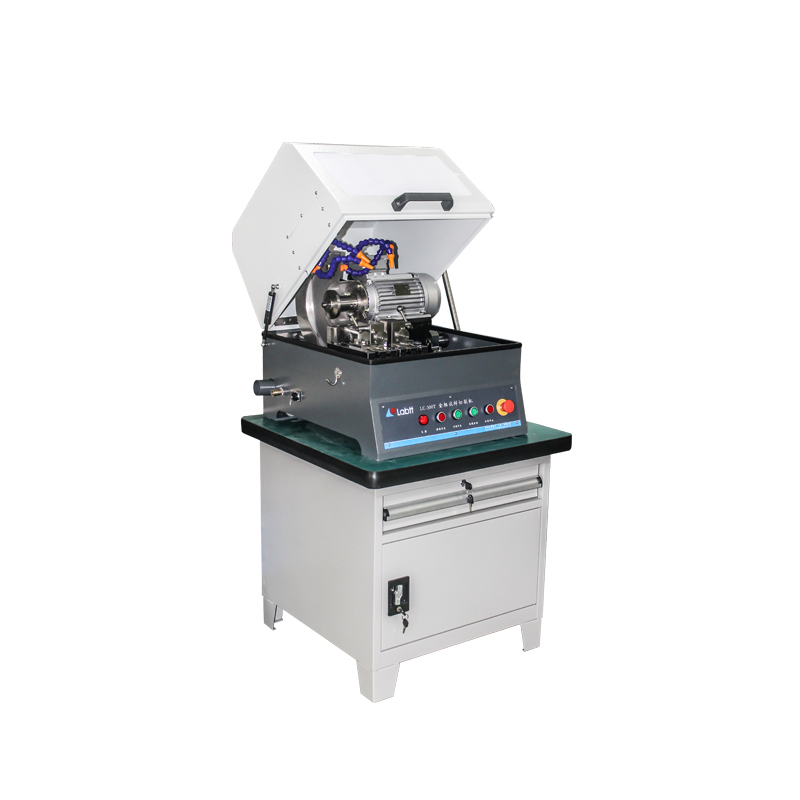

LC-300Z Cutting Machine

 Metallographic Specimen Cutting Machine



Main features:

LC-300T Cutting Machine can be used to cut metal sample
The machine adopts closed structure, large observation window, use safe
Quick clamping mechanism, easy to clamp sample
Have a special cooling water tank, for circulating cooling liquid
With a flush nozzle, easy to clean cutting table
Main components such as jaw and work surface adopts stainless material, long service life

Main Technical Specifications

Max cutting section:Φ85mm

Grinding wheel:300*2*32mm

Speed:2800/min

power:2.2kW380V,50Hz

Overall Dimension: 820*770*1440mm

Cooling Unit:680*670*640mm

Weight160kg
